Indexmatic Fully Automatic Filters |
 |
|
Solution Being Filtered |
||
Self-Cleaning Operation |
||
Filter Media Renewal |
||
 |
||
| C. Filter Media Renewal | ||
|---|---|---|

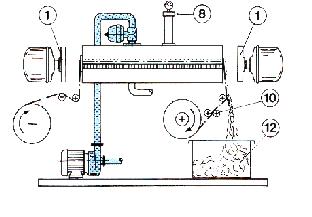

| When the filter chamber is empty, a preset timer closes air valve (8) and doors (1) open. Used filter paper is pulled from the chamber by roller (10), dried dirt "cake" is separated from the filter paper by a scraper blade and dropped into bin (12). | ||
Return to Filtration Cycle |
||
