Indexmatic Fully Automatic Filters |
 |
|
Solution Being Filtered |
||
 |
||
| A. Solution Being Filtered | ||
|---|---|---|

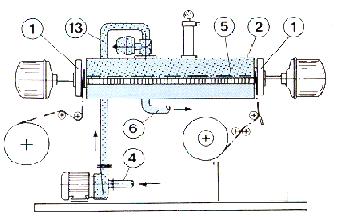

| Doors (1) are sealed
against ends of the filter chamber (2). The pump circulates solution
from the vat via the suction inlet (4) and pump line (13) into the
filter chamber and through the filter media (5) which is supported
by a perforated platen in the bottom of the filter chamber. Filtered solution is discharged, under pressure, via outlet line (6) and returned to the vat. |
||
