| B. Self Cleaning Solution | ||
|---|---|---|

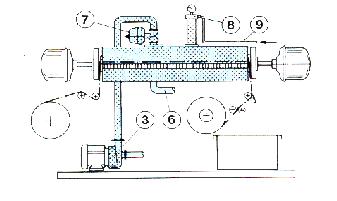

| This operation
commences automatically when a preset timer or pressure response
control stops the motor, the pump (3) and the cross valve (7) to
isolate the unfiltered solution from the filter chamber. Air valve (8) opens, allowing air from line (9) to force residue to the chamber, through the filter media via the outlet line (6) back to the vat. |
||
